9pin Controller/Joystick cable for Atari 2600, Commodore C64, Vic-20, Amiga, Sega Master System, Genesis, etc.

40 in stock




Quantity:

Weight: 55g
Letter postage options are available for this item


  

These new reproduction cables are suitable for replacing damaged controller, paddle, mouse, or joystick cables for many popular video game and home computer systems made in the 80s. Including:

  • Atari 130, 800XE, 800XL, 2600, 7200, 7800
  • Amstrad CPC
  • Commodore Vic-20, C64, C128
  • Commodore Amiga
  • ColecoVision
  • FM Towns/Marty computers
  • MSX computers
  • Sega SG-1000
  • Sega Master system
  • Sega Mega Drive / Genesis
  • Sinclair ZX Spectrum
  • Texas Instruments TI-99/4A
  • X68000 computers

Additionally they can be used to connect with standard 9pin RS-232 serial ports on PCs, or for any other application of DE9 female connectors.

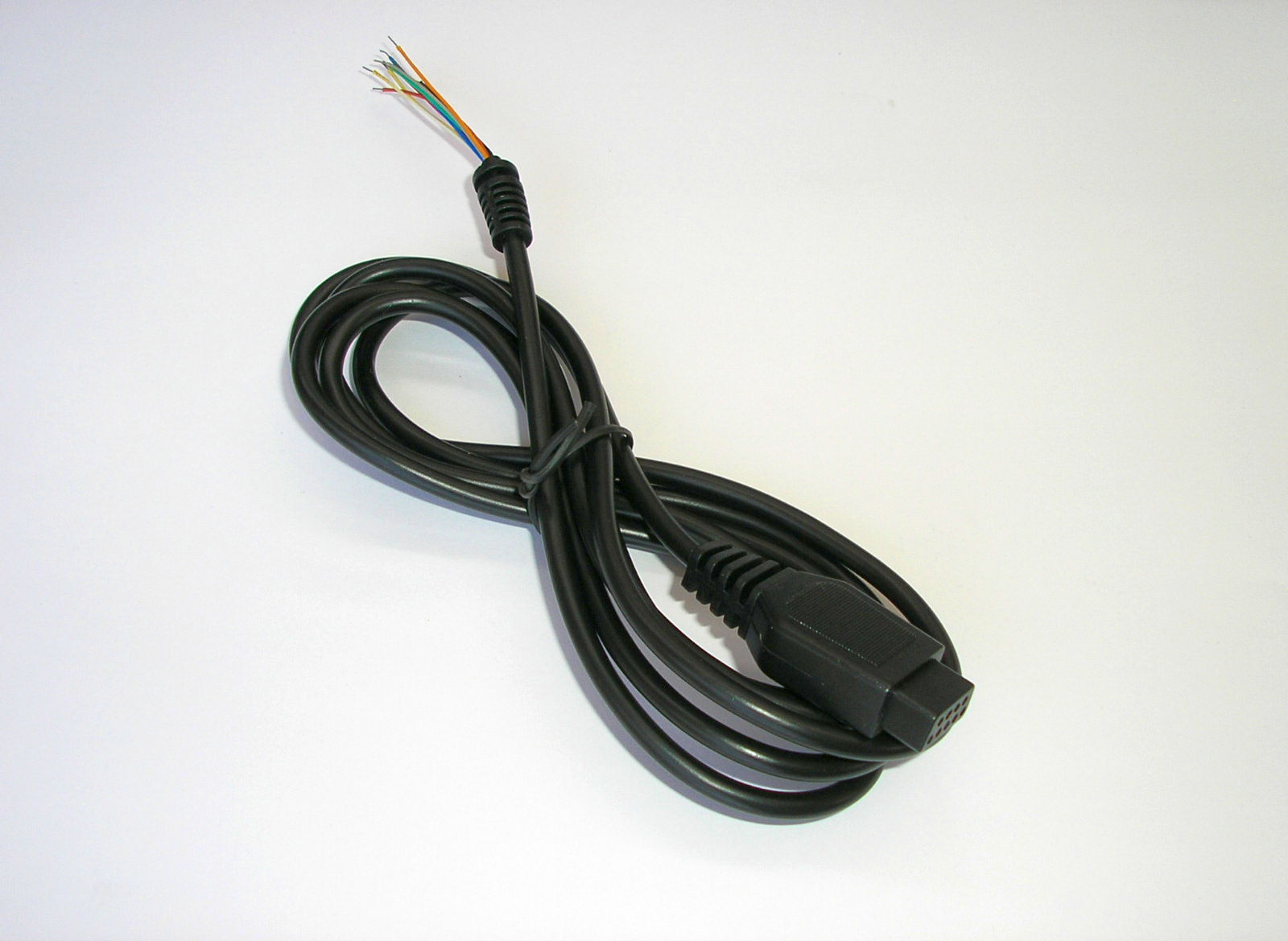

The cables are very flexible and sturdily made, with strain reliefs at both ends. Length is 150cm.

The pin-out of the cables is as follows:

  1. Red
  2. Black
  3. Grey
  4. Orange
  5. Brown
  6. Green
  7. White
  8. Blue
  9. Yellow

System pin-outs at Wikipedia

The White and Grey wires can look similar, best to double-check in good light.

Note that the wire colours in these cables may not match the original cable being replaced. Use the above colour list and the controller pin-out for your console to determine the order to use.

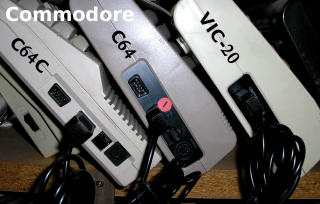

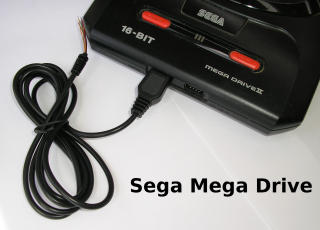

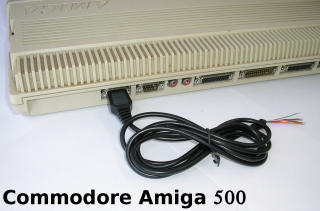

Examples
